- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Tripp Lite series
- Product Line
- SmartRack
- Product Type
- Cable Routing

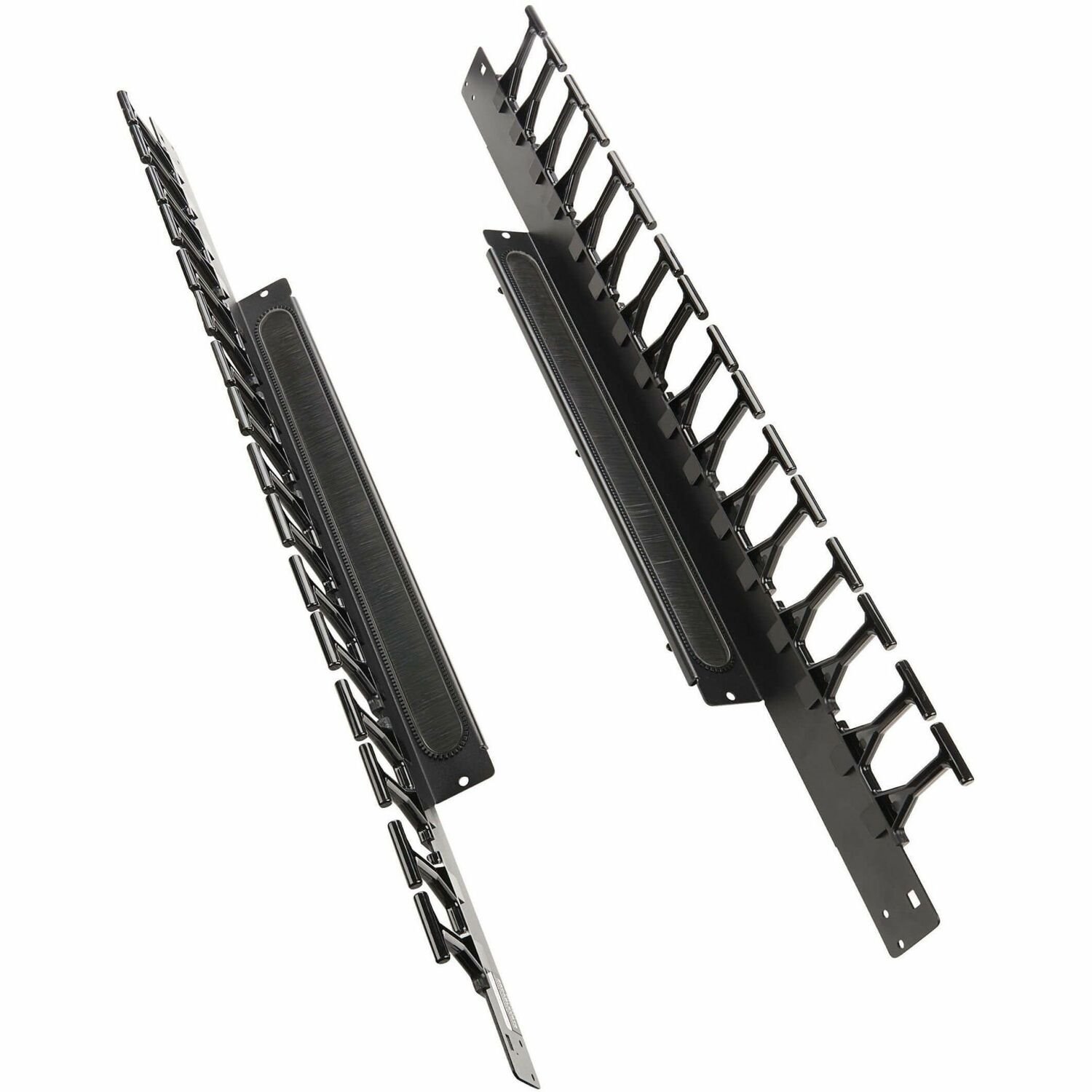

Vertical Cable Manager Keeps Your Rack Looking Neat and Organized
Easy to mount inside your rack cabinet or open frame rack, the SmartRack® SRCABLEVRTS neatly organizes fiber optic, copper and coax cable bundles. This vertical manager maintains proper bend radius to eliminate stress on the cables connecting your network devices. Short three-inch cable finger guides installed either inside or outside the cable bushings allow convenient access to cabling for routing and separation of bundles.
Separate Sections Allow Flexibility in Mounting
The SRCABLEVRTS comes in two separate sections for easy installation on the equipment rails in the rear of the enclosure. It is versatile enough to fit a wide range of racks, including cabinets and open frame racks from 42U to 48U and wide racks from 750 to 800 millimeters, using the included one-, three- and five-hole extenders. The vertical cable manager is made from cold-rolled steel with an attractive black finish that matches your rack.
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Cable Manager Type
- Vertical Cable Finger
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Cold Rolled Steel
- Rack Height
- 48U
- Height
- 5.43"
- Width
- 2"
- Depth
- 86.70"
- Weight (Approximate)
- 8.50 lb
- Miscellaneous
- Package Contents
- 2x SRCABLEVRTS rails
- 1-Hole extender
- 3-Hole extender
- 5-Hole extender
- 4x Rail holders
- 3x Cable finger guides
- 4x M4x8 screws
- 4x M5x10 thread-forming screws
- 4x M6 cage nuts
- 4x M6x12 screws
- Owner's manual
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
