- General Information
- Manufacturer
- HP Inc.
- Manufacturer Website Address
- http://www.hp.com
- Brand Name
- HP
- Product Series
- Z6 G5 A
- Product Type
- Workstation

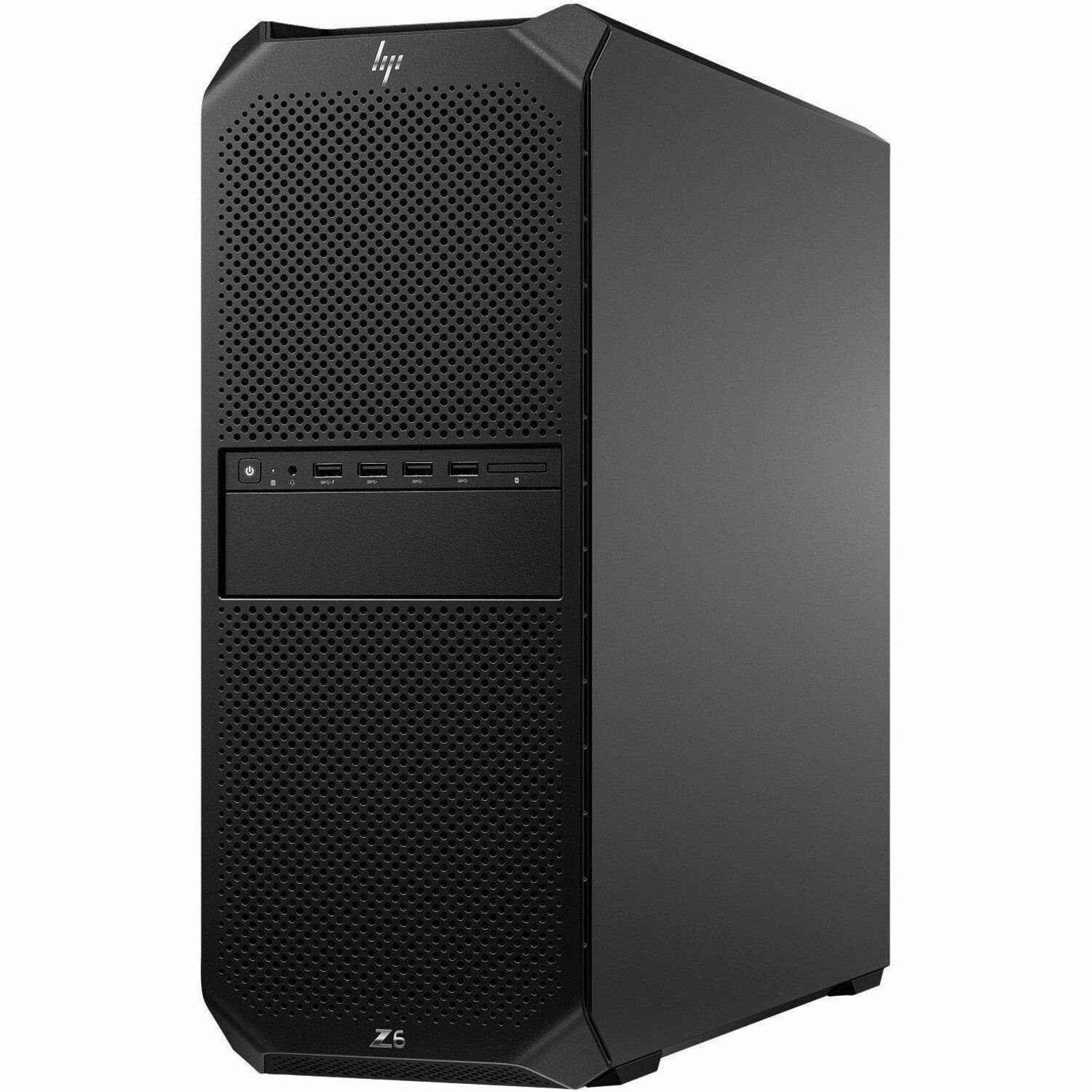

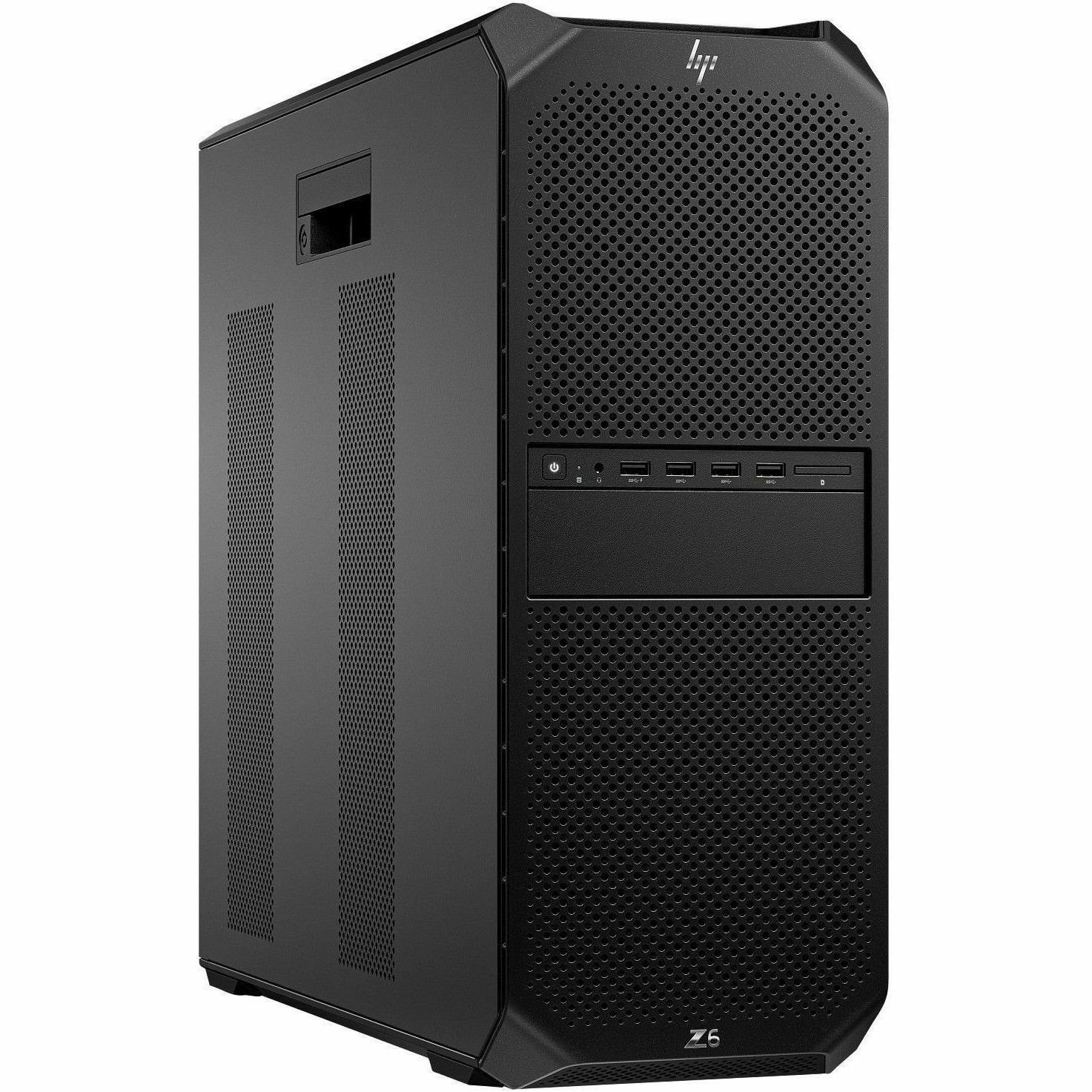

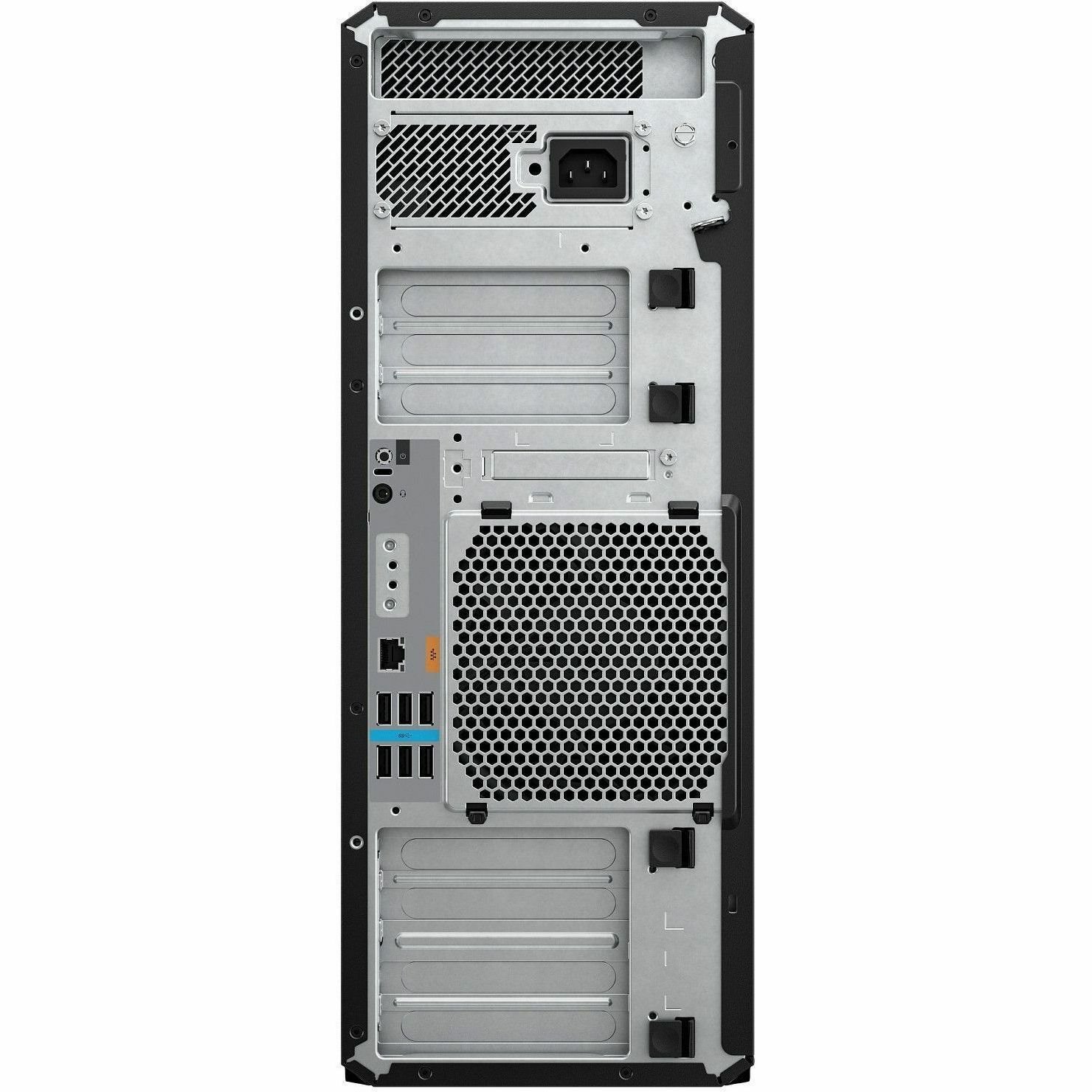

Overview | Maximized Cores. Astounding Graphics. Unbound Potential
The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen Threadripper PRO CPU, combines an astounding number of cores in a single CPU with up to 3 GPUs. Create and render at once on intensive projects.
Create, render, process-all at once
Tear through rendering, simulations or 3D modeling. The system design packs up to 96 cores in a single workstation CPU so there's room for up to three high-end GPUs and eight memory channels. And, do it all with efficient performance per watt.
Your AI powerhouse, in-house
Accelerate AI development and inferencing with space for up to 3 NVIDIA RTX GPUs, delivering incredible TOPS for advanced AI workflows. Process proprietary data securely on a local workstation for fast insights.
Expandable. Flexible. Whisper Quiet
Designed to pack all the power and components you need now with room to grow. Get maximum expandability with large storage and memory configurations. Conquer intense projects with a device designed to run quiet and cool.
Designed with the planet in mind
At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.
Features | HP recommends Windows 11 Pro for business
Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.
AMD® Ryzen™ processor
Bring your ideas to life quickly and effectively with the latest AMD® Ryzen™ processors.
Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.
Ultra Fast Memory Configurations
Accelerate your workflow. Power through memory-intensive workloads with fast visual effects, compositing, and rendering performance.
- Technical Information
- AI-powered
- Yes
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Manufacturer
- AMD
- Processor Type
- Ryzen Threadripper PRO
- Processor Model
- 9955WX
- Processor Core
- Hexadeca-core (16 Core)
- Processor Threads
- 32
- L3 Cache
- 64 MB
- Processor Socket
- Socket SP6 LGA-4844
- Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- PRO 695
- Memory
- Standard Memory
- 32 GB
- Maximum Memory Supported
- 1 TB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 8
- Error Checking
- ECC
- Memory Configuration
- 2 x 16GB
- Signal Processing
- Registered
- Storage
- Drive Type
- SSD
- Total Solid State Drive Capacity
- 1 TB
- Solid State Drive Interface
- PCI Express NVMe 4.0 x4
- Controllers
- Controller Type
- Serial ATA/600
- NVMe
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 10
- Display & Graphics
- Graphics Controller Manufacturer
- NVIDIA
- Graphics Controller Model
- RTX 2000 Ada Generation
- Graphics Memory Capacity
- 16 GB
- Graphics Memory Accessibility
- Dedicated
- Maximum Memory Bandwidth
- 224 GB/s
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 12
- Number of Onboard USB 2.0 Ports
- 1
- Number of USB 3.1 Gen 1 Ports
- 8
- Number of USB 3.2 Gen 1 Ports
- 2
- Mini DisplayPort
- Yes
- Number of Mini DisplayPort
- 4
- Number Of Ethernet Ports
- 1
- Optional Ports
Details regarding optional ports aggregated from the information available for this product's family/series.
- 2x10GbE LAN ports
Flex I/O Module:
- 2x USB 3.0 Type-A
- 1x USB 3.1 Gen2 Type-C charging port
- Input Devices
- Keyboard Localization
- English
- Operating System
- Operating System Platform
- Windows
- Operating System
- Windows 11 Pro
- Operating System Language
- English
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 775 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Cooler Type
- Air Cooler
- Form Factor
- Tower
- Height
- 17.5"
- Width
- 6.7"
- Depth
- 18.3"
- Weight (Approximate)
- 29.10 lb
- Miscellaneous
- Package Contents
- Z6 G5 A Workstation Wolf Pro Security Edition
- Keyboard
- Mouse
- Energy Star
- Yes
- TCO Certified
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
- Energy Efficiency Certification
- China Energy Conservation Program (CECP)
- Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
