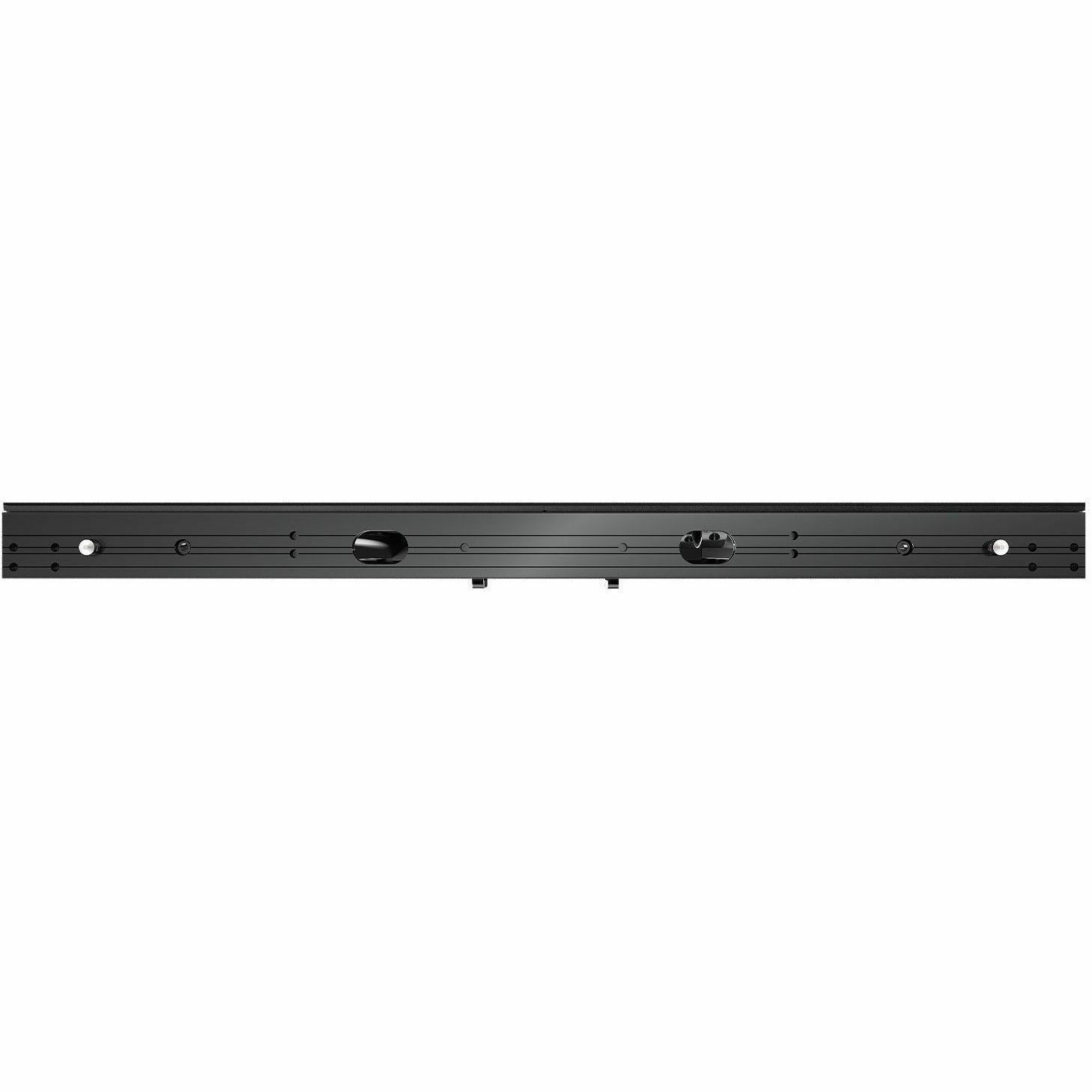

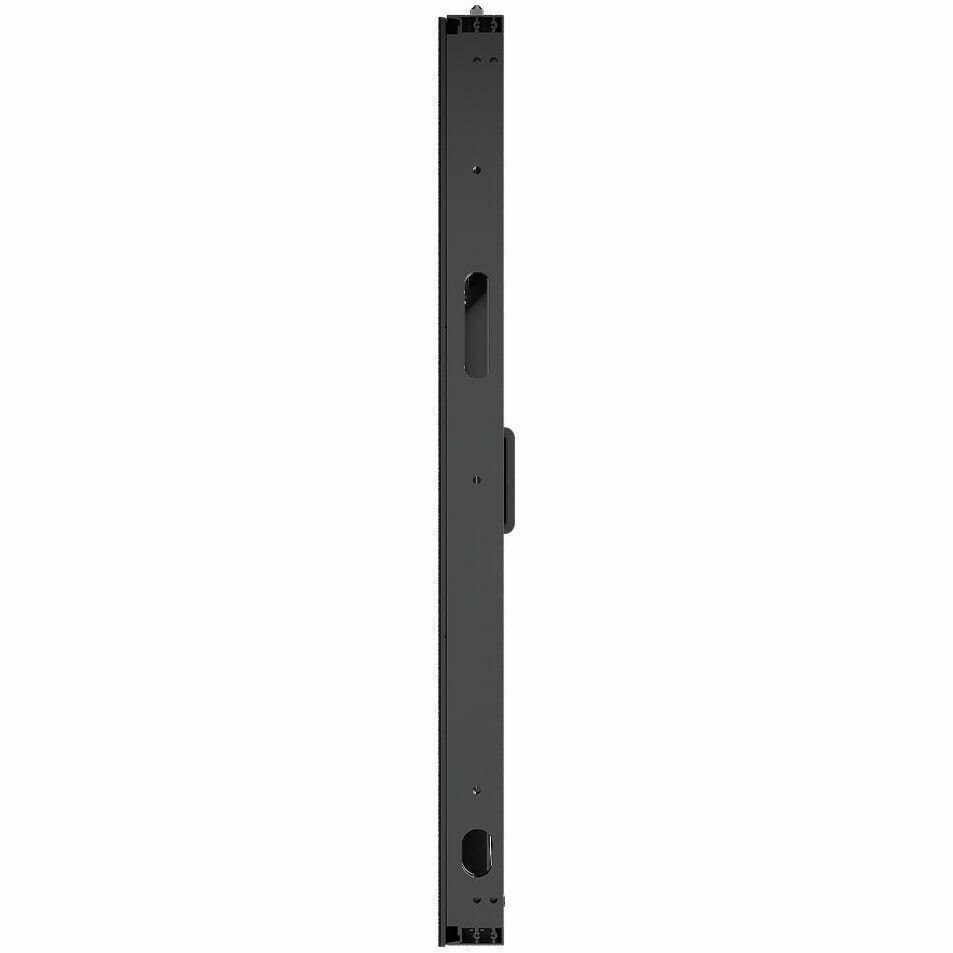

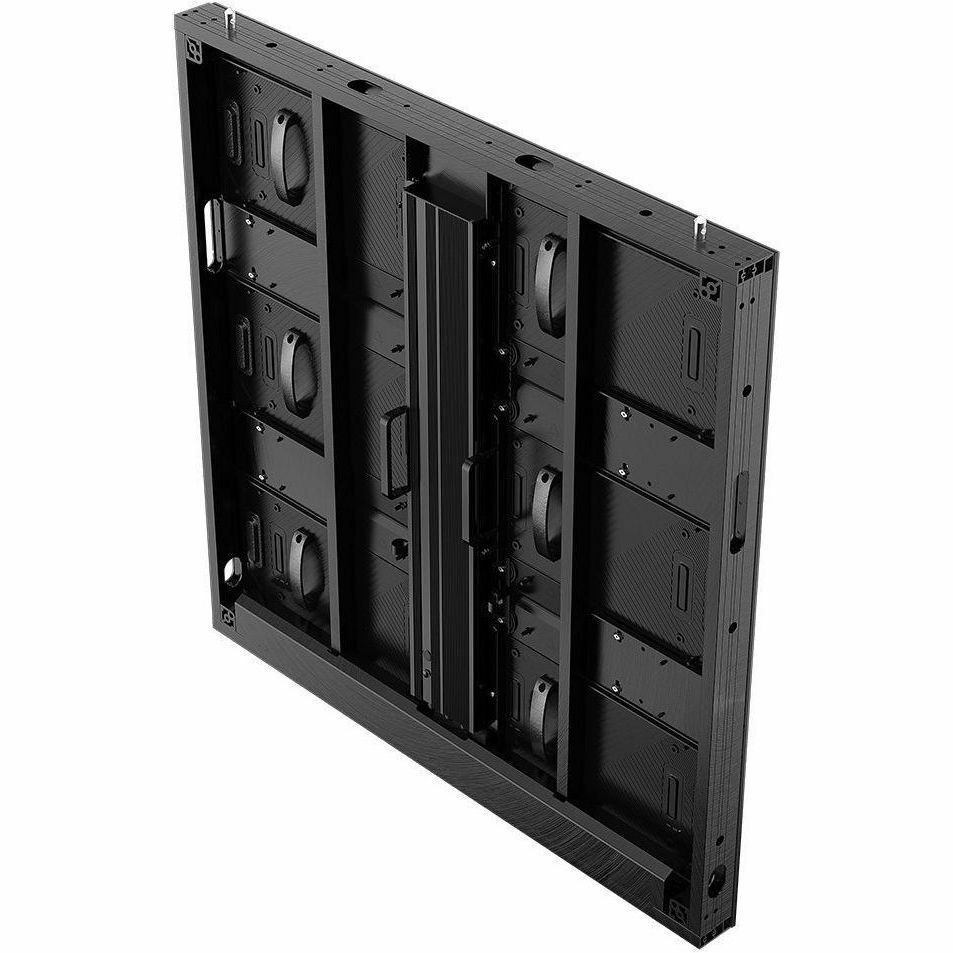

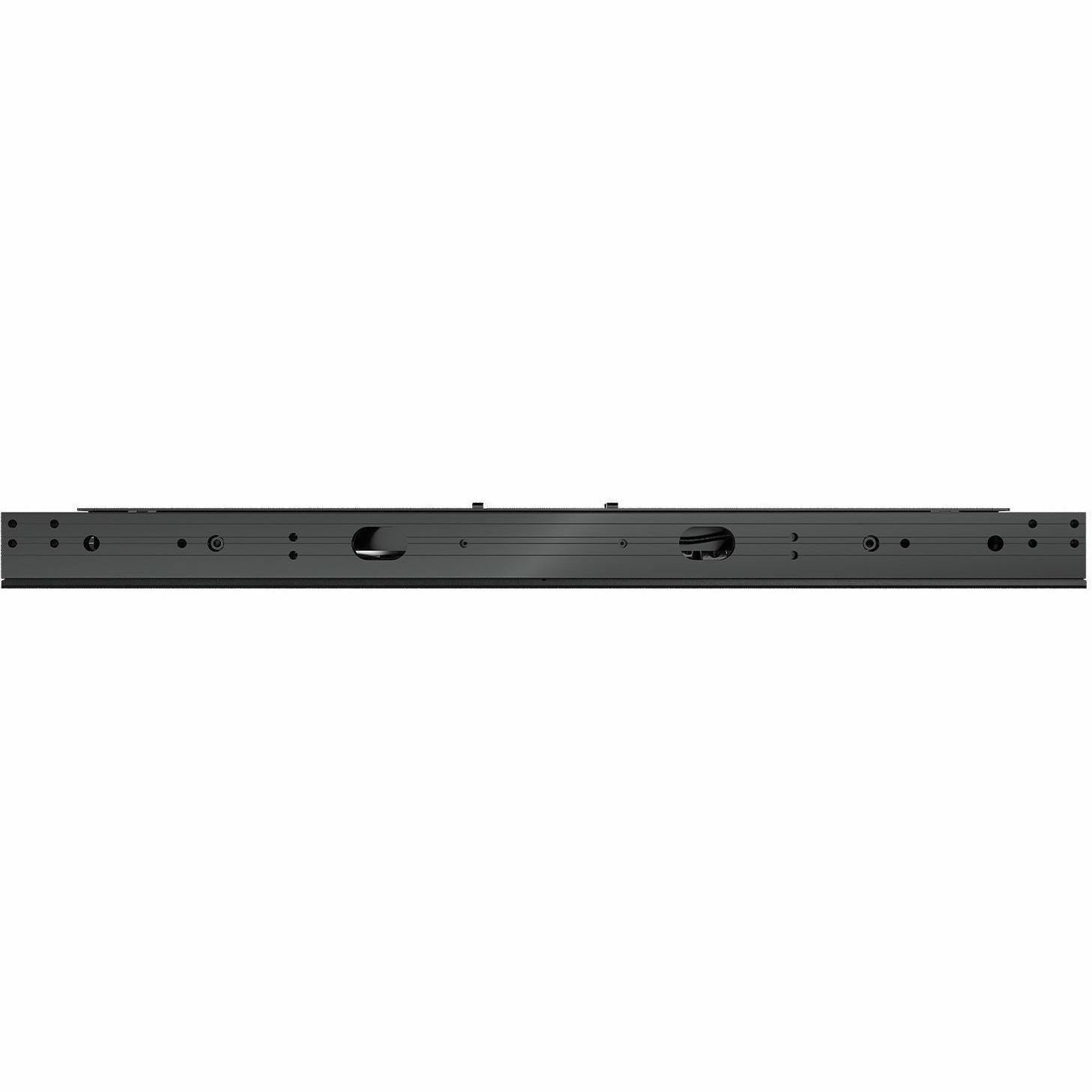

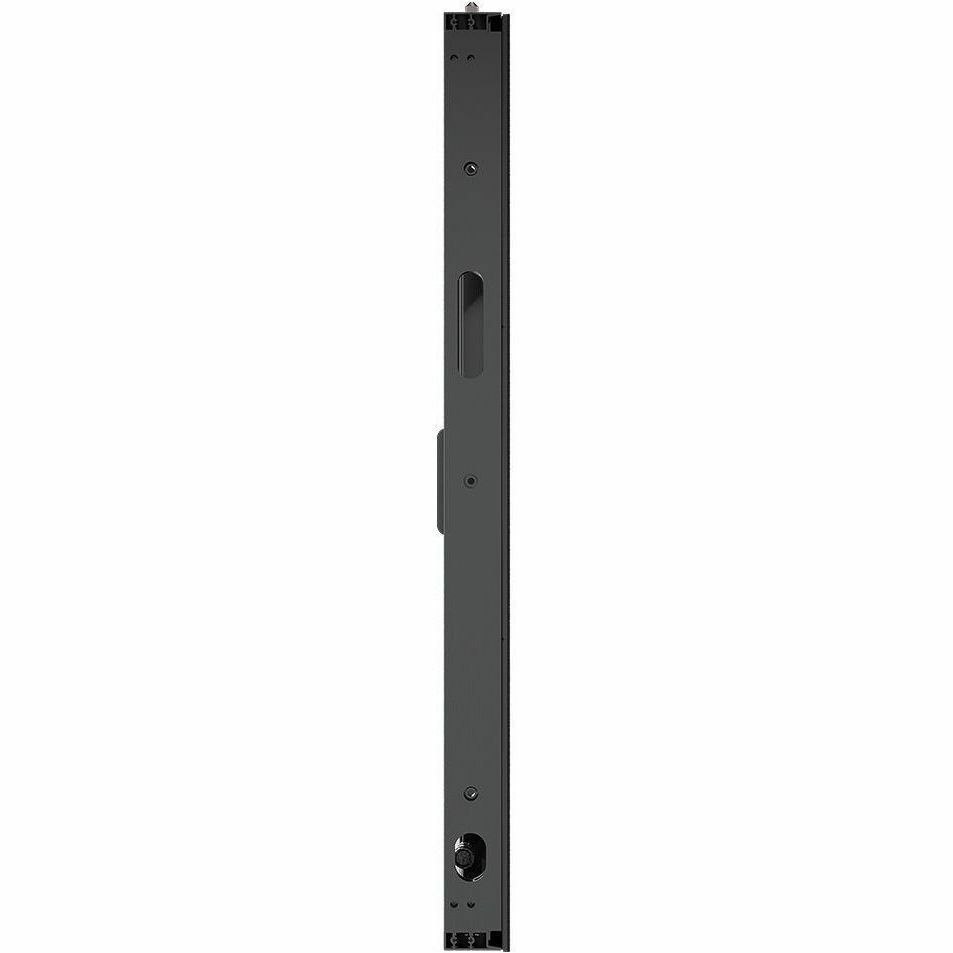

LG 6.6 mm GSPA Series Direct View LED standard panel with 6,000 nits brightness

  • Part: 3219978
  • Model: GSPA066-GE
$1,504.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • LG Electronics
    • Manufacturer Website Address
    • https://solutions.lg.com/us
    • Brand Name
    • LG
    • Product Type
    • Digital Signage Display

Long-Range Visibility

Ideal for long-distance visibility, our GSPA6.6/10.0 models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals.

Enhanced Energy Efficiency

Compared to LG's traditional model, power consumption has decreased by more than 21%*, based on the same brightness. This means that operating costs are significantly reduced.

Flexible Installation

The GSPA series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPA series integrates seamlessly into the space and delivers smooth content to customers.

High Brightness for Outdoor

Optionally, users can choose among several models, such as P10 / 10,000 cd/m², P10 / 8,000 cd/m², P6.6 / 8,000 cd/m², and P6.6 / 6,000 cd/m². It can also be optimized for screen time, region, regulations, and power consumption, depending on different environmental conditions. The P10 operates at temperatures up to 60°C and can be reliably installed at altitudes of up to 5,000 meters.

Compatibility with LG Software Solutions

When connected with LG's CVGA system controller, the GSPA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.


  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Heat Dissipation
    • 463.93 W
    • Average Heat Dissipation Per Cabinet
    • 154.16 W
    • Ingress Protection (IP) Rating
    • IP66
    • Minimum Color Temperature
    • 5300.3°F (2926.8°C)
    • Maximum Color Temperature
    • 16280.3°F (9026.8°C)
    • Color Uniformity
    • ±0.003 Cx, Cy
    • Service Access
    • Front
    • Rear
  • Display & Graphics
    • Display Resolution
    • 144 x 144
    • High Dynamic Range (HDR)
    • Yes
    • High Dynamic Range (HDR) Type
    • HDR10
    • HDR10 Pro
    • Pixel Pitch
    • 0.26"
    • Horizontal Viewing Angle
    • 160°
    • Vertical Viewing Angle
    • 140°
    • Cabinet Surface Area
    • 10 Sq. ft.
    • Number of Modules Per Cabinet
    • 2x3
    • Module Resolution
    • 72 x 48
    • Maximum LED Life
    • 11.4 Year
    • LED Type
    • Single SMD
    • Physical Pixel Density
    • 22500 pixels/m²
  • Video
    • Standard Refresh Rate
    • 7.68 kHz
    • Frame Refresh Rate
    • 60 Hz
    • Dynamic Contrast Ratio
    • 15,000:1
    • Brightness
    • 6000 Nit
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
  • Environmental Conditions
    • Minimum Operating Temperature
    • -22°F (-30°C)
    • Maximum Operating Temperature
    • 122°F (50°C)
    • Minimum Operating Humidity
    • 10%
    • Maximum Operating Humidity
    • 90%
  • Physical Characteristics
    • Height
    • 37.8"
    • Width
    • 2.7"
    • Depth
    • 2.7"
    • Module Height
    • 12.60"
    • Module Width
    • 18.90"
    • Weight per Module (Approximate)
    • 3.60 lb
    • Weight per Cabinet (Approximate)
    • 45.20 lb
    • Housing Material
    • Aluminum
    • Weight per Square Meter (Approximate)
    • 22500 g/m²
  • Miscellaneous
    • Additional Information
      • Brightness Uniformity : 97%
      • Power Consumption per Cabinet (Max) : 630W
      • Power Consumption per Cabinet (Avg.) : 193W
      • Minimum Radius : No
      • Controller : CVGA
    • Certifications & Standards
      • CE
      • CB
      • FCC
      • cTUVus : No
      • BS476 Part7 (UK Fire Rating): Class 1
      • ETL (Regulatory): Yes
    • Environmentally Friendly
    • Yes
    • Environmental Certification
    • REACH
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • TAA Compliant
    • No
