- General Information
- Manufacturer
- Ubiquiti Inc.
- Manufacturer Website Address
- http://www.ui.com
- Brand Name
- Ubiquiti
- Product Type
- AC Adapter

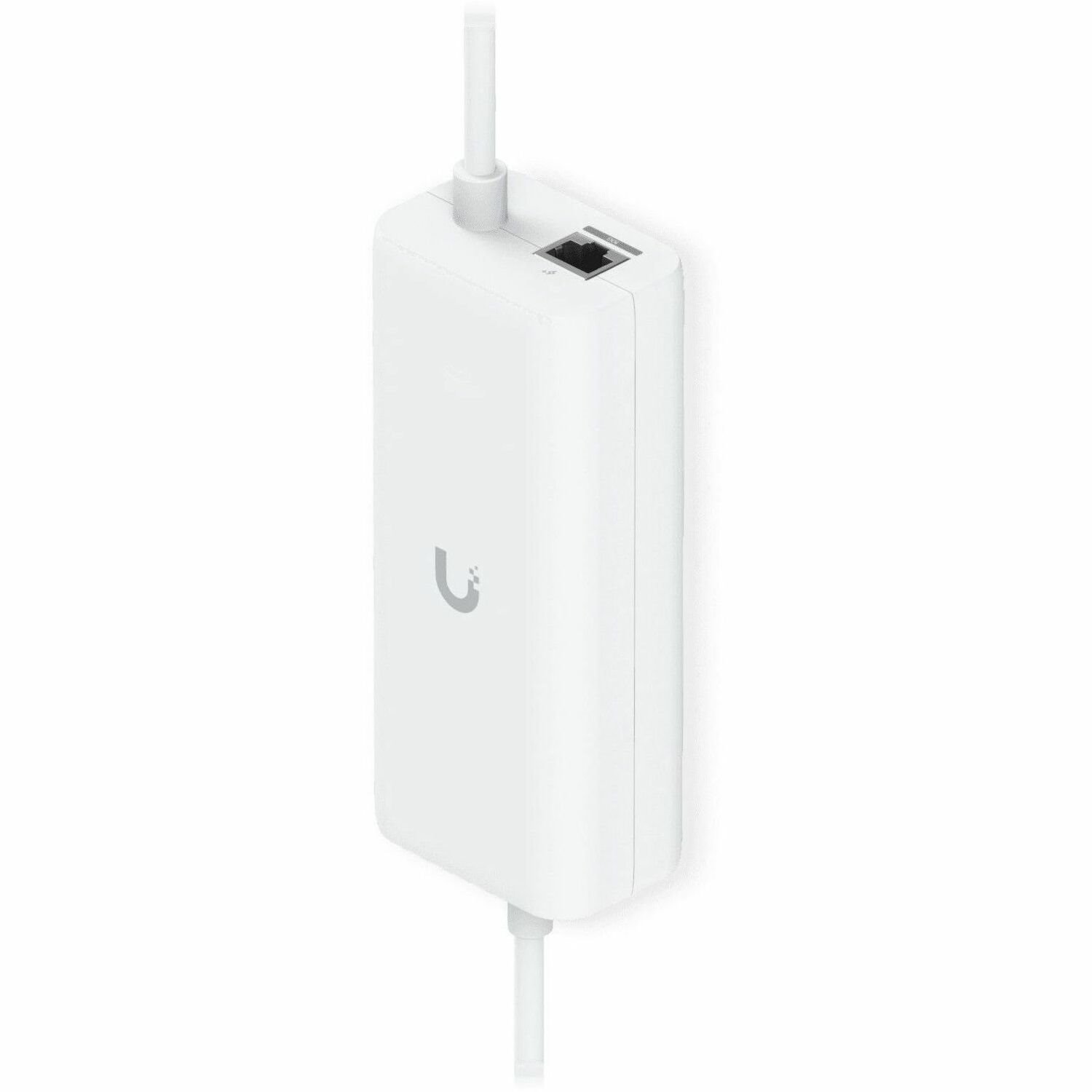

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
- Delivers up to 30W of PoE+
- Supports wall mount, DIN rail and floating mount
- Lockable latch designed for power cord security
- Technical Information
- Device Supported
- Access Point
- Router
- Cable Length
- 5.91 ft
- Features
- Surge Protection
- Interfaces/Ports
- USB Type-C
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Frequency
- 50 Hz
- 60 Hz
- Output Voltage
- 5 V DC
- 48 V DC
- Output Voltage Detail
- 5 V @ 5 A
- 48 V @ 0.65 A
- Maximum Output Power
- 30 W
- Maximum Input Current
- 1.50 A
- Maximum Output Current
- 5 A
- Physical Characteristics
- Height
- 1.8"
- Width
- 2.4"
- Depth
- 1.7"
- Weight (Approximate)
- 12.63 oz
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Storage Temperature
- 86°F (30°C)
- Maximum Storage Temperature
- 158°F (70°C)
- Miscellaneous
- Compatibility
Ubiquiti Cloud Gateway Devices:
- UCG-Ultra
- UCG-Max
- UXG-Lite
- UXG-Max
- UX
- UX7
- Certifications & Standards
- CE
- FCC
- IC
- UL
- UKCA
- CCC
- KC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
